[Overview]

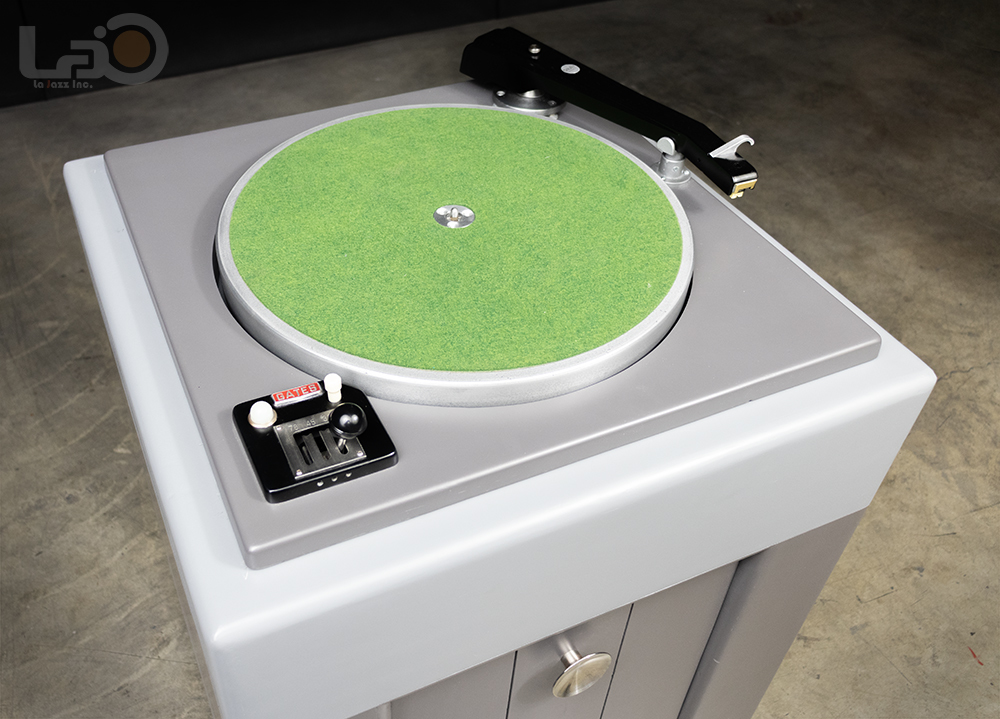

This is a GATES CB-500 M5739 17-inch broadcast turntable, originally manufactured for professional radio station use.
This was a standard model widely used at radio stations and other broadcast facilities during its era.
Evidence of the previous owner’s careful maintenance over many years can be seen in both its excellent cosmetic condition and smooth operation. Switching between the three speeds—33, 45, and 78 RPM—is smooth and quiet.
The motor operates extremely smoothly, with virtually no abnormal noise or noticeable speed fluctuation.
[Specifications]
CB-500
- Speeds: 33, 45, 78 RPM
- Drive System: Idler drive
- Platter: 17-inch cast aluminum
- Noise/Rumble Reduction:
- 33 RPM: -45 dB (-50 dB minimum)
- 45 RPM: -40 dB (-45 dB minimum)
- 78 RPM: -35 dB (-39 dB minimum)
- Wow: Rated 0.15% at 33 RPM
- Flutter: Rated 0.07% at 33 RPM
- Power Frequency: 60 Hz
- Motor Speed: 600 RPM
- Input Voltage: 115V
- Power Consumption: 35W
- Dimensions including base: W590 × H300 × D590 mm
- Weight: Approx. 25 kg
Accessories
- GATES 16-inch long tonearm
- SHURE M3D cartridge — a formidable cartridge capable of delivering bold, powerful American sound in stereo.
Important Power Frequency Notice
This unit is designed for 60 Hz operation.
When using the turntable in a 50 Hz region, including the Kanto area and regions to the north in Japan, a frequency converter will be required.
Frequency converters can be found on Yahoo! Auctions Japan, with prices generally starting at approximately ¥10,000.
